Stiltz Trio+

Name: Molecule Pvt. Ltd.
Address: 295 Kaduwela Road, Thalangama, 10600, LK
Telephone: +94 760 902 630

A wheelchair-accessible through-floor lift

For larger families or for those who need to accommodate a full-sized wheelchair, the Stiltz Trio+ Home Lift is the perfect solution. The intelligent styling of this wheelchair lift allows for a wider entrance, with the self-supporting ‘stilts’ recessed discreetly in the sides of the lift car.

The Trio+, like the entire Stiltz range, benefits from full or half height door options with the added benefit of a light curtain which provides an extra level of safety and security for users, inside and out.

CALL US ON

+94 760 902 630

Book your free home survey or request a callback using the buttons below.

Request a Free Survey Book a Callback

Your Installation Journey

Step 1Contact us

Step 2Get booked in

Step 3Schedule a date

Step 43–4 day install

Why Choose the Stiltz Trio+?

Our largest home lift — built for full wheelchair accessibility without compromise.

♿

Wheelchair Accessible

Step-free, level-access cabin so wheelchair users can move between floors independently.

📐

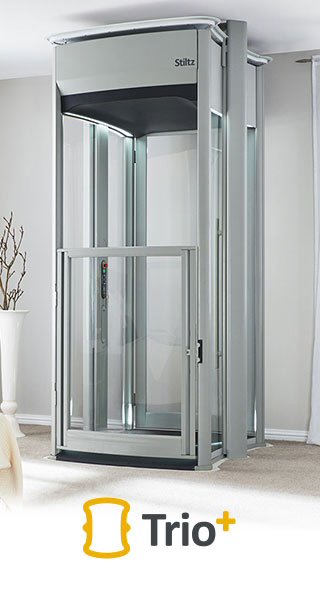

Wide Level-Access Cabin

A generous 1,000 × 900 mm interior with plenty of room to manoeuvre.

🚪

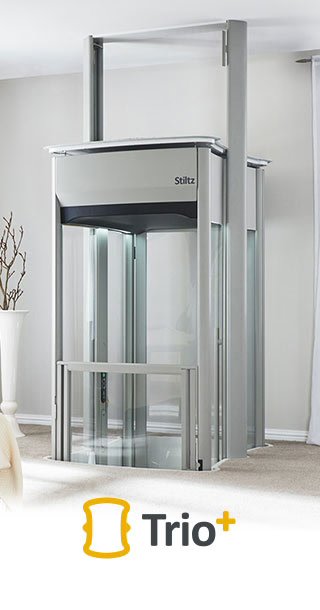

Fully Automated Doors

Hands-free, automatic doors make entering and exiting effortless.

💪

300 kg Capacity

Comfortably carries a wheelchair and passenger, or two people together.

🔇

Quiet Air-Driven Technology

Smooth, near-silent air-driven travel for a calm, reassuring ride.

⏱️

Installed in Around a Day

Fitted in roughly a day with no structural building works required.

The Trio Wheelchair Home Lift Specifications

Select a category below to explore the full technical specification.

Standard Finishes	Trio+: pale warm grey construction with clear polycarbonate lift car body. Trio Classic: neutral cream exterior and door with a matching beige interior lining colour.
Half Height Door	The door is interlocked and is made to match the finish of the lift.
2 x Remote Controls	Call and send the lift remotely and also use it to move heavy or awkward items between floors.
One Year Warranty	All Stiltz Lifts carry a comprehensive 12 months parts and labour warranty.
Internal LED Downlights	Programmed to turn on once the user has entered the lift and remain on for the entire journey.
Battery Back Up System	If there is a power cut while using the lift it will descend to the lower level of the home and wait until the power comes back on.
Full Height Light Curtain	Light curtain when fitted with half height door.
Interior Telephone	In the very unlikely event that the lift stops while you are travelling in it, help is just a phone call away.

All measurements are approximate. Please refer to the full technical datasheet for exact specifications.

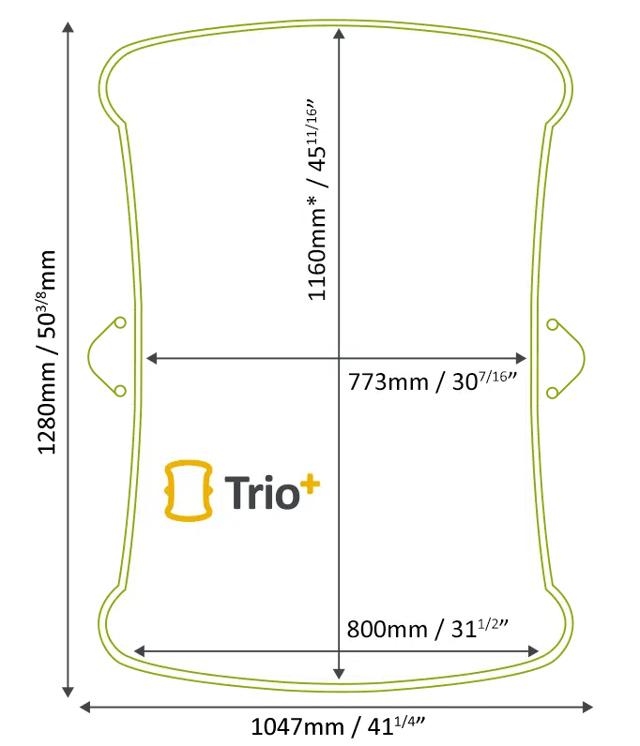

Footprint	1047 × 1280 mm
Maximum Travel	6 metres
Maximum Load	220kg \| 35st \| 485lbs
Maximum Speed	15cm / second
Power Supply	220–240v AC \| 5 Amps

Fold Down Seat	A popular option selected by customers for the short trip between floors.
Interior Grab Rail	Offers increased security for the occupants of the lift.
Full Height Door	An interlocked door that replaces the half-height door and light curtain.
Bespoke Colours & Finishes	Customise your Stiltz lift by choosing different colour lift car, rails and interior lining (Classic range only).

Full Height Light Curtain	A full-height motion sensor at the entrance of the lift. If this barrier is crossed the lift will immediately stop.
Safety Lid Plug	Plugs the aperture in the floor when the lift is in the downstairs position. Strong enough to stand on — original flooring can be placed on top.
Key Switch Operation	Allows the owner to isolate the lift if needed — commonly used when going away or when children are around.
Top & Bottom Safety Pans	Obstruction sensing covers detect objects above or below the lift, causing it to immediately stop.
Hold-To-Run Controls	Requires constant pressure to operate — allows the user to 'drive' the lift and feel in total control.
Weight Limit Sensors	Limited to 220kg / 35 stone / 485lbs. The lift detects anything exceeding this limit and will not travel.
Out Of Balance Sensors	Sensors detect if the lift is ever out of balance and prevent the unit from travelling.
Fall Arrest Mechanism	This patented system prevents the car from falling in the unlikely event of the steel ropes going slack.
Emergency Stop Button	Front and centre for the user in the event of an emergency.
Over Speed Detection	An optical sensor detects travel speed. If this increases beyond a set limit, the sensor stops the lift.

Drive	Roped drum, braked gear motor drive
Power Supply	220–240v AC \| 5 Amps
Maximum Load	220kg \| 35st \| 485lbs
Maximum Travel	6 metres
Maximum Speed	15cm / second
Entrance Security	Full height light curtain / motion sensor — optional full height door
Lighting	4 x 3w LED downlights
Landing Call Stations	2 wireless remote control units — call / send facility
Operation	Hold-to-run controls
Configuration	Single entry or double entry / ThruCar
Rope Diameter	6mm galvanised steel rope
Additional Sensors	Out-of-balance & overload, overspeed detection and light curtain
Compliance	European Machinery Directive 2006/42/EC & Australian Standard 1735 Part 15
Warranty	12 months parts and labour warranty
